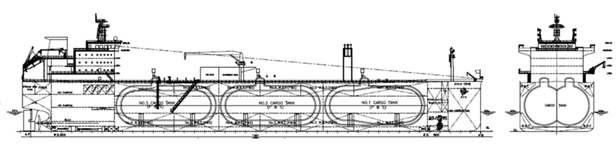

30,000 m³ Type C LNG Carrier (LNG Fuelled) -- Designed by Jiangnan Shipyard


  • Continuous deck, VS-bow, transom stern with open water type stern frame, semi-balanced rudder and a fixed pitch propeller directly driven by a dual fuel low speed engine.
  • Three(3) bi-lobe independent cargo tanks of IMO type C which to be designed with a maximum pressure of 3.72 bar g, a minimum temperature of -163ºC and a maximum cargo specific gravity of 0.50.
  • Double bottom tanks with hopper and top side tanks to be arranged for water ballast.

MAIN PARTICULAR

Length (o.a.):
 180.00 m
Length (b.p.):
 176.00 m
Breadth:
 28.80 m
Depth:
 19.00 m
Designed draft: moulded 7.30 m
Scantling draft:
 7.65 m
Deadweight:

CAPACITIES

Cargo tanks incl. domes 30,000 m3
Water ballast tanks 11,500 m3
LSDO tanks 600 m3
Fresh water tanks 200 m3

MAIN ENGINE & SPEED

Main Engine:
 WinGD 5X52DF
Service Speed:
 15.0 knots
Ruising Range:
 7,000 n.m
Fuel Consumption:
 16.1 ton (fuel gas model)




Orderbook   (* the orderbook for reference only, details please contact with the shipyard !)
No.Ship's Name / Hull No.Vessel TypeOwner CompanyShipyardDeliveryContract Date
1Hanwha 2615LNG Tanker, 174,000 cbmGasLog LTDHanwha Ocean2028 - 052025 - 09
2Hanwha 2614LNG Tanker, 174,000 cbmGasLog LTDHanwha Ocean2028 - 032025 - 09
3Hanwha Philly 2609LNG Tanker, 174,000 cbmHanwha Shipping LLCHanwha Philly Shipyard2028 - 022025 - 08
4Samsung 2752LNG Tanker, 174,000 cbmCelsius ShippingSamsung HI2027 - 112025 - 08
5Samsung 2753LNG Tanker, 174,000 cbmCelsius ShippingSamsung HI2028 - 012025 - 08
6Samsung 2754LNG Tanker, 174,000 cbmTMS Cardiff Gas LtdSamsung HI2028 - 052025 - 08
7Samsung 2756LNG Tanker, 174,000 cbmTMS Cardiff Gas LtdSamsung HI2028 - 092025 - 08
8Samsung 2755LNG Tanker, 174,000 cbmTMS Cardiff Gas LtdSamsung HI2028 - 072025 - 08
9Samsung 2757LNG Tanker, 174,000 cbmTMS Cardiff Gas LtdSamsung HI2028 - 112025 - 08
10Hanwha PhillyLNG Tanker, 174,000 cbmHanwha Shipping LLCHanwha Philly Shipyard2028 - 012025 - 07
11Hyundai SamhoLNG Tanker, 174,000 cbmCapital Maritime & TradingHyundai HI, Samho2028 - 022025 - 06
12Hyundai SamhoLNG Tanker, 174,000 cbmCapital Maritime & TradingHyundai HI, Samho2028 - 062025 - 06
13Hyundai SamhoLNG Tanker, 174,000 cbmCapital Maritime & TradingHyundai HI, Samho2028 - 042025 - 06
14Hyundai SamhoLNG Tanker, 174,000 cbmCapital Maritime & TradingHyundai HI, Samho2028 - 082025 - 06
15Hyundai Samho 8276LNG Tanker, 180,000 cbmPurus Marine Services LtdHyundai HI, Samho2027 - 122025 - 04
16Hanwha 2607LNG Tanker, 171,500 cbmHanwha Ocean Co LtdHanwha Ocean2027 - 082025 - 03
17Hanwha 2606LNG Tanker, 171,500 cbmHanwha Ocean Co LtdHanwha Ocean2027 - 062025 - 03
18Samsung 2729LNG Tanker, 176,400 cbmCelsius ShippingSamsung HI2027 - 062025 - 01
19Sasaki 732LNG Tanker, 7,500 cbmUnknownSasaki Shipbuilding2027 - 032025 - 01
20Samsung 2709LNG Tanker, 170,520 cbmMISC BerhadSamsung HI2027 - 012024 - 12
21Samsung 2710LNG Tanker, 170,520 cbmMISC BerhadSamsung HI2027 - 042024 - 12
22Hanwha 2602LNG Tanker, 170,520 cbmMaran GasHanwha Ocean2027 - 082024 - 11
23Hanwha 2603LNG Tanker, 170,520 cbmMaran GasHanwha Ocean2027 - 102024 - 11
24Hudong-Zhonghua H1913ALNG Tanker, 265,580 cbmShandong Ocean (山东海运)Hudong-Zhonghua Shipbuilding2028 - 082024 - 10
25Samsung 2717LNG Tanker, 170,520 cbmK-LineSamsung HI2027 - 062024 - 10
Records: 321,   Page: 1  2  3  4  5  6  7  8  9  10  >>
