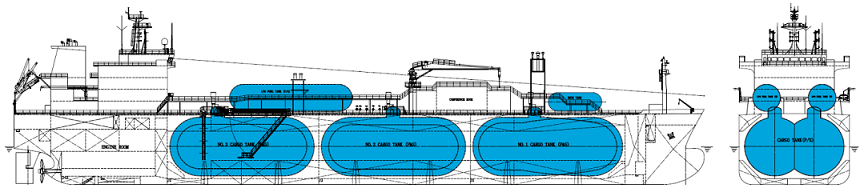

22,000 m3 LPG Carrier, developed by Jiangnan Shipyard


Main Particulars

Length (o.a.):
 160.00 m
Length (b.p.):
 152.42 m
Breadth, mld:
 25.60 m
Depth, mld: 16.50 m
Design Draft (Td): 8.30 m
Scantl. Draft (Ts):
 9.50 m

Cargo List

Propane, Butane, Commercial propane, Mixture of propane and butane, Anhydrous Ammonia, VCM

Tank Capacities

Cargo Tank: 22,000 m3
Deck Tank: 160 m3
L.S. Fuel Oil Tank (0.5%): 1,150 m3
L.S. Distillate Oil Tank (0.1%): 200 m3
Fresh Water Tank: 200 m3
Ballast Water Tank: 8,300 m3
Urea Solution Storage Tank (40%) :
 30 m3

Main Engine & Service Speed

Main Engine:
 MAN 5S50ME-C9.7-LGIP-HPSCR
Service Speed:
 16.0 kn
Cruising Range:
 16,000 nm

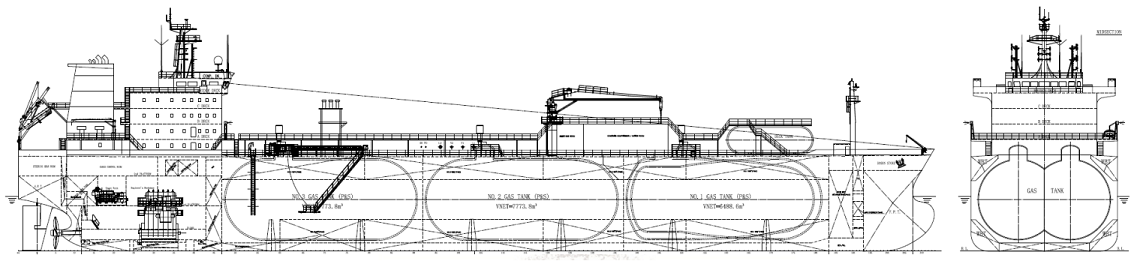

22,000 m3 CO2/LPG Carrier, developed by Jiangnan Shipyard



Main Particulars

Length, oa 159.99 m
Length, bp 152.42 m
Breadth, mld 25.60 m
Depth, mld 17.80 m
Design Draft (Td)
11.80 m
Scantl. Draft (Ts)
12.40 m

Cargo List

Propane, Butane, Commercial propane, Mixture of propane and butane, Anhydrous Ammonia, VCM, Butadiene, Mixture of N-Butane/ I-Butane, Butylene, C4 Mixture, Isoprene monomer, Diethyl ether, Diethyl ether, Isopropylamine, Monoethylamine, Vinyl ethyl ether, CO2

Tank Capacities

Cargo Tanks: 22,000 m3
Ammonia Fuel Tank: 3500 m3
Cargo Deck Tank: 160 m3
VLSFO tanks (0.5%):
1,400 m3
ULSFO tanks (0.1%) :
 250 m3
Fresh Water Tanks: 300 m3
Ballast Water Tanks: 7,500 m3

Main Engine & Speed

Main Engine: MES 5S50ME-C9.7-LGIA-HPSCR
Service Speed: 14.8 kn
Cruising Range: 30 days with 3 days margin



Orderbook   (* the orderbook for reference only, details please contact with the shipyard !)
No.Ship's Name / Hull No.Vessel TypeOwner CompanyShipyardDeliveryContract Date
1Hyundai Samho HILPG Tanker, 90,000 cbmCiner GroupHyundai HI, Samho2030 - 032026 - 07
2Hyundai Samho HILPG Tanker, 90,000 cbmCiner GroupHyundai HI, Samho2030 - 012026 - 07
3Hyundai Samho HILPG Tanker, 90,000 cbmCiner GroupHyundai HI, Samho2030 - 052026 - 07
4Friendship HY2602LPG Tanker, 5,200 cbmChangsheng (Shanghai) Shipping Co., ChinaZhejiang Friendship Shipyard2027 - 122026 - 07
5JiangnanLPG Tanker, 90,000 cbmCYH ShippingJiangnan Shipyard20302026 - 07
6JiangnanLPG Tanker, 90,000 cbmCYH ShippingJiangnan Shipyard20302026 - 07
7JiangnanLPG Tanker, 90,000 cbmCYH ShippingJiangnan Shipyard20302026 - 07
8JiangnanLPG Tanker, 90,000 cbmCYH ShippingJiangnan Shipyard20302026 - 07
9Hengli DalianLPG Tanker, 88,000 cbmEvalend ShippingHengli Shipbuilding20282026 - 07
10Hengli DalianLPG Tanker, 88,000 cbmEvalend ShippingHengli Shipbuilding20282026 - 07
11Hyundai SamhoLPG Tanker, 90,000 cbmHMM Co LtdHyundai HI, Samho2029 - 102026 - 06
12Hyundai SamhoLPG Tanker, 90,000 cbmHMM Co LtdHyundai HI, Samho2029 - 122026 - 06
13Hyundai HI, UlsanLPG Tanker, 90,000 cbmDorian LPGHyundai HI, Ulsan2029 - 072026 - 06
14Jiangnan H2799LPG Tanker, 90,000 cbmThenamarisJiangnan Shipyard2029 - 102026 - 06
15Hyundai Ulsan 3669LPG Tanker, 90,000 cbmBGN International DMCCHyundai HI, Ulsan2029 - 092026 - 06
16Hyundai Ulsan 3670LPG Tanker, 90,000 cbmBGN International DMCCHyundai HI, Ulsan2029 - 112026 - 06
17Hengli HL-G93K-8LPG Tanker, 93,000 cbmDynagas LTDHengli Shipbuilding20282026 - 06
18Hengli HL-G93K-7LPG Tanker, 93,000 cbmDynagas LTDHengli Shipbuilding20282026 - 06
19Hengli DalianLPG Tanker, 93,000 cbmCapital Maritime & TradingHengli Shipbuilding20282026 - 06
20Hengli DalianLPG Tanker, 93,000 cbmCapital Maritime & TradingHengli Shipbuilding20282026 - 06
21Hyundai Ulsan 3673LPG Tanker, 90,000 cbmUnion Maritime LtdHyundai HI, Ulsan2029 - 092026 - 06
22Yangzi-Mitsui YZJ2026-1788LPG Tanker, 90,000 cbmUnion Maritime LtdYangzi-Mitsui Shipbuilding2030 - 032026 - 06
23Hyundai Ulsan 3674LPG Tanker, 90,000 cbmUnion Maritime LtdHyundai HI, Ulsan2029 - 122026 - 06
24Yangzi-Mitsui YZJ2026-1787LPG Tanker, 90,000 cbmUnion Maritime LtdYangzi-Mitsui Shipbuilding2029 - 122026 - 06
25Hyundai Mipo 8482LPG Tanker, 90,000 cbmBW LPG LimitedHyundai HI, Mipo2028 - 102026 - 05
